Products Details

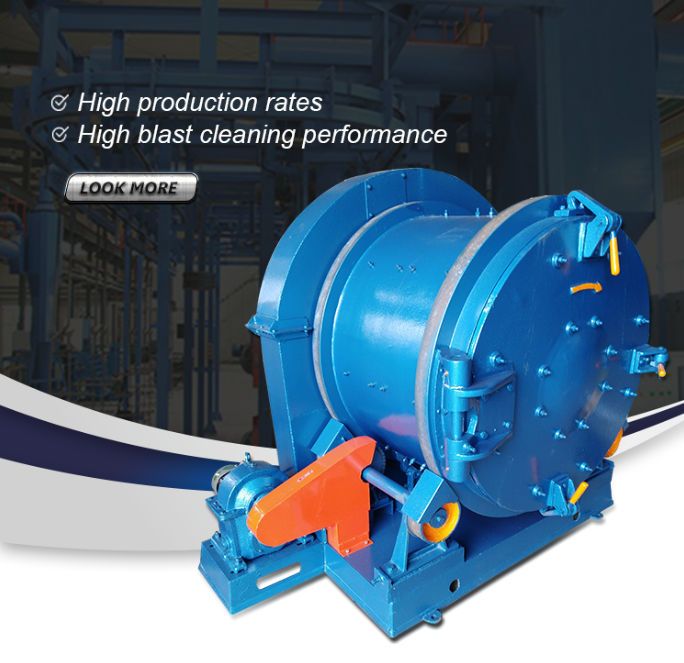

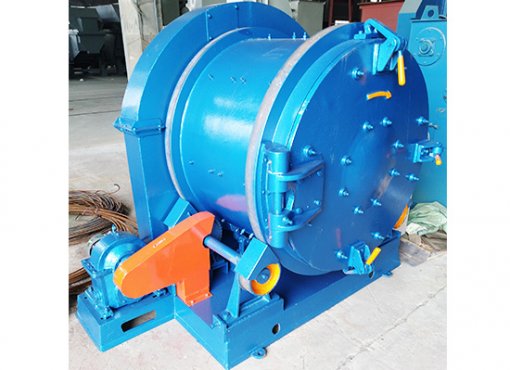

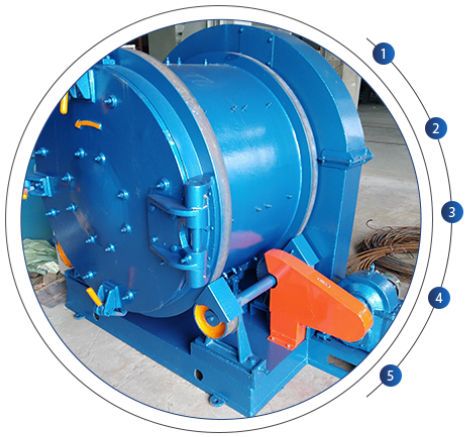

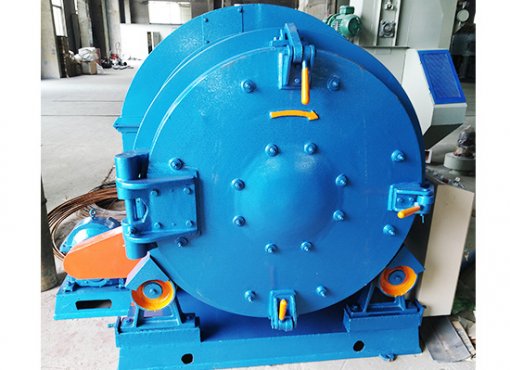

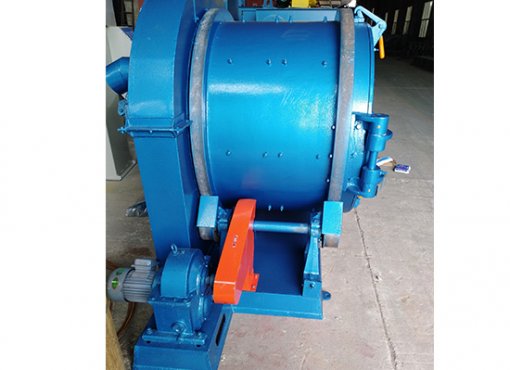

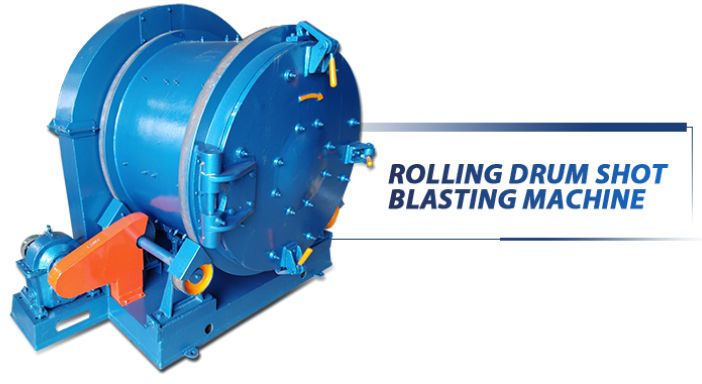

ROLLING DRUM SHOT BLASTING MACHINE



Product Name Rolling Drum shot blasting machine
Applied to materialcasting, metal parts, profiles, etc.
Applicable industrymachinery, foundry, forging, mechanical and steel industry
functionImprove anti-fatigue performance, Improve corrosion resistance
Voltage380V/50HZ or 220V/60HZWarrantyOne year
PowerElectricityCertificateCE, ISO 9001
ModelQ31PLCSiemens, Omron
ProductivityCustomizedLow voltageSchneider
ConditionNewBrandsDongheng
ColorCustomizedSizeCustomized
Cleaning methodAutomaticElectrical control systemAuto-detection, auto-alarm, and auto-cutout.
Material Metal/coilOriginShangdong, China
Cleaning materialShot steel/shot grit/wire cut etcAfter-sales serviceEngineers available to service machinery
If you have any question or concerns. please feel free to contact us.

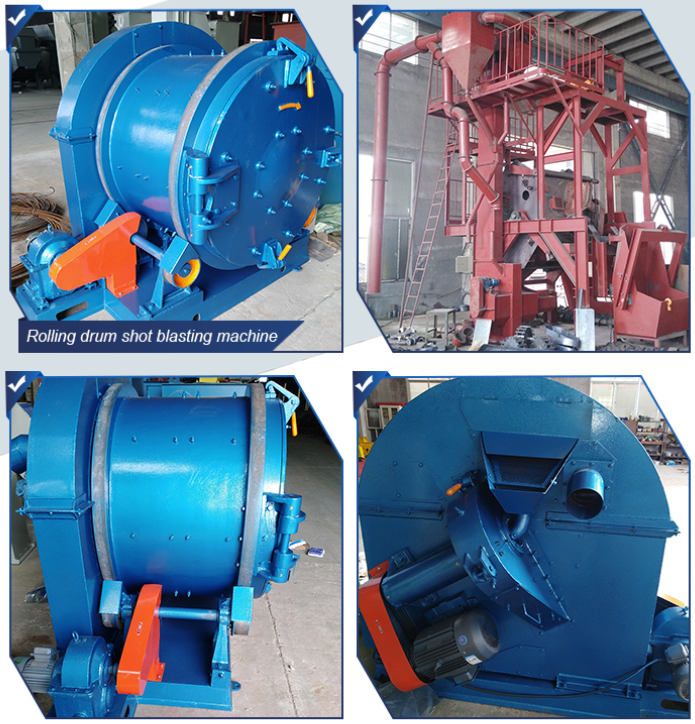

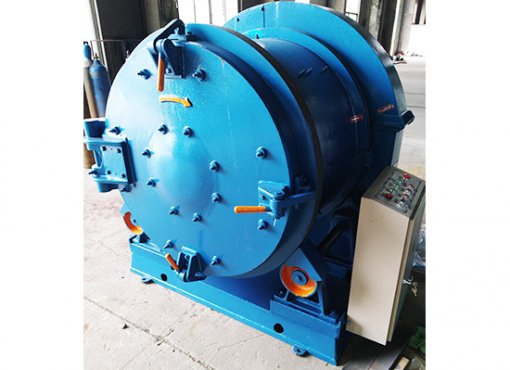

Drum type shot blasting machine belongs to small shot blasting machine.

This king drum type shot blasting machine with smooth rotation in work time so that parts of the cylinder gently rolling, uniform shot blasting, remove the surface rust, sticky sand, dirt, but also can improve the workpiece internal stress and improve the surface quality of the workpiece and anti- Fatigue strength.


Work Process:

Drum-type shot blasting machine cylinder made of cast iron, the internal bolts with a protective plate, the plate has a grid hole and the spiral of the guide ribs, in order to turn the workpiece in the work. There is also a spiral belt for recovering the abrasive between the guard and the drum shell. The whole roller system is supported on two pairs of reels of the frame, and the roller is driven at low speed by the reducer motor driven by chain and sprocket. As the drum speed is low, the casting of the bruises, edges, and corners of the wear are less occur, and because of the role of the abrasive reflection, to clean up the more complex shape of the castings and forgings. The end cover is located at one end of the drum, so the loading and unloading are convenient, and it is convenient to replace the guard and maintenance work.




- The number and power of the turbines are chosen according to the required production rate.

- PLC control system, stable quality and easy to get support from local.

- Component key parts adopt world famous brand, such as Siemens, Omron, Schneider, Mitsubishi.

- With BE rotating drum separator, high separating rate.

- All shot blasting machines are totally integrated with abrasive reclaim systems,   separator and dust collector.




The machine is suitable for sand-casting, rust removal, descaling and surface strengthening of small castings, forgings, stampings, gears, springs and other parts in machine tools, automobiles, textile machinery, metallurgy, chemical industry, and aerospace industries.

It is especially suitable for parts cleaning and strengthening without fear of collision.

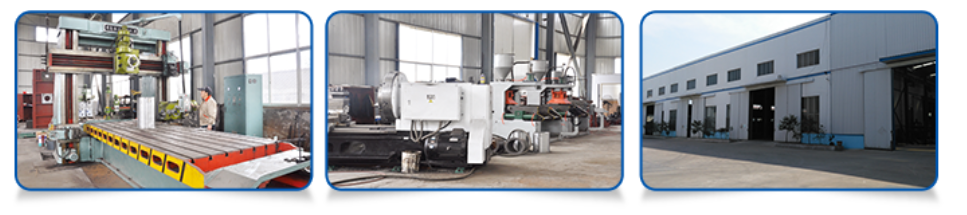

Qingdao Dongheng Foundry Machinery Co., Ltd., is a professional foundry casting equipment manufacturers, Located in the Lingang Industrial Park, Huangdao District of Qingdao City, here is the manufacturing base, complete industry categories, mechanical and electrical supporting the environment and strategic location, land and sea air transportation facilities.

Southern Cross Harbor Tunnel through the Qingdao Railway Station, north cross-sea bridge in-line near Qingdao Airport.Foundry Machinery Co.,Ltd. Qingdao Dongheng the existing staff of about"! 00 people, covering an area of nearly 40 acres, plant area of over 10,000 square meters, is a collection of scientific research, design, manufacture, installation and commissioning, and technical advice as one of modern integrated machinery business.

Production of resin sand casting line, clay sand reclamation complete sets of equipment; V-process casting line, EPC modeling equipment; sand & shot blasting equipment; core shelling machinery, core shooting machine, molding machine.

Complete sets of automatic molding line environmental protection equipment for casting enterprises to provide a full range of pre and post sales services.


 TECHNICAL ADVANTAGES:

Qingdao Dongheng Foundry Machinery Co., Ltd. research strength is strong, long-term friendly relations of cooperation with major domestic research institutes, such as a hospital in Bengbu, Shanghai nine homes, Shenyang Institute of Electrical and the Luoyang four of Hospitals, Zhengzhou six homes, always keep up with the latest technology in the industry to comply with the "quality first, customer first" service approach, with new product design, development, prototype, debug capabilities, business, and technical staff time and up close, the user needs profound practical experience, each product an improvement are for user convenience, the interests of users. The spirit of "scientific, rigorous and efficient" style of work in the shortest possible time in accordance with the requirements to provide users with the best technical solutions, and delivery in the shortest period quality. Through a wide range of technical exchanges and cooperation, the introduction of foreign advanced technologies that will make my company's products to reach the domestic advanced level. The sand casting, molding line, shot blasting various aspects of senior experts in leading technology work, the experts have a wealth of experience and high technology of the industry, our company's product quality and technical content are at the forefront of the industry.







1. What is the target market for this machine?

The Blaster is designed for customers who require a more sophisticated method than just manual cleaning in preparation for further processing or painting.


2. What type of abrasive media does it use?

The Blaster is designed to use the round steel shot. The shot is recycled inside the system and gets smaller and smaller during the blasting process until it is completely consumed. Approximately two tons are required for start-up, and approximately 20 pounds are consumed per blasting hour. Replenishment is easily done as needed.


3. What utilities are needed to run the Blaster?

The electrical system runs on three-phase input and a transformer will be provided for your supply voltage is required. The clean and dry compressed air supply is also needed.


4. What does it cost to operate?

The highly efficient turbines require much less power than competitor's shot blast machines. Including abrasive consumption, power consumption, and maintenance, the total operating cost averages around $20 per hour in the US. When comparing this to your current methods, keep in mind that the Blaster is at least 4 to 5 times as productive as manual cleaning and only one operator is required to load and run the machine while it is working. Labor costs are much lower, plus you will have a huge amount of extra capacity for cleaning.


5. Are there any special operator skills required for the Shot Blaster?

No, once the machine is installed and adjusted by our technician, running the machine consists of merely switching it on and setting the speed dial for the desired surface finish. Maintenance is simple too.
