TUMBLE SHOT BLASTING MACHINE
|Product Name||Tumble shot blasting machine|
|Applied to wach material||casting, metal parts, profiles etc.|
|Applicable industry||machinery, foundry, forging, mechanical and steel industry|
|function||Improve anti-fatigue performance, Improve corrosion resistance|
|Voltage||380V/50HZ or 220V/60HZ||Warranty||One year|
|Power||Electricity||Certificate||CE, ISO 9001|
|Cleaning method||Automatic||Electrical control system||Auto-detection, auto-alarm and auto-cutout.|
|Cleaning material||Shot steel/shot grit/wire cut etc||After-sales service||Engineers available to service machinery|
|If you have any question or concerns. pls feel free to contact us.|
Equipment: Track loading device (optional), blast wheel, abrasive recycle system, separator, dust collector, control system.

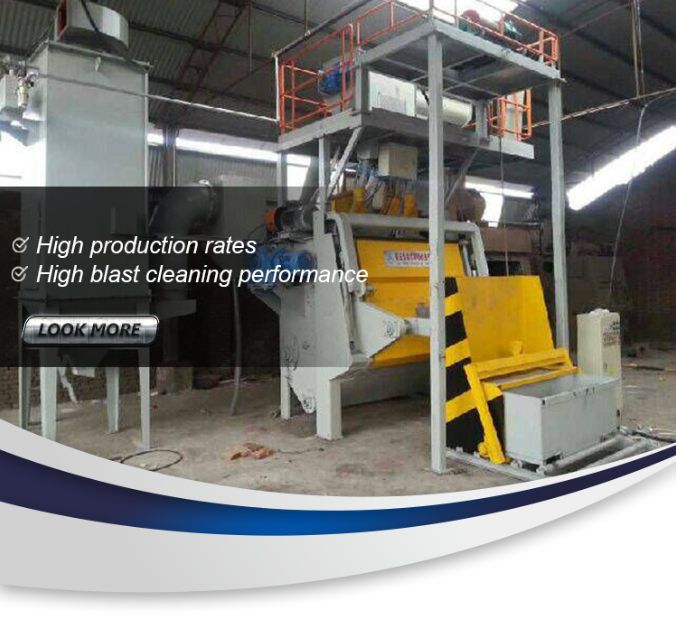

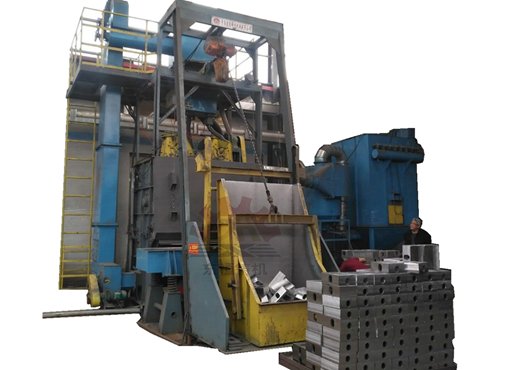

The tumble blast design has been recognized for decades as the most effective blasting process for removing scale, rust and burrs from mass production parts that require the rubber mill design found in our Model Q32 tumble blast machines. The tumble blast machine’s endless rubber mill continuously turns the work pieces and exposes them to the abrasive stream for the entire blasting time.
- Abrasive reclaim system：3 classes full flow curtain hammer style.
- Safety control：Setup safety interlock device between systems.
- Dust collector：Pulse-jet cleaning bag filter to remove dust.
●Pulse jet bag type dust collector,dust remove efficiency is over 99%. Good for environmental protection. A cartridge type dust collector can control the dust concentration under 50 mg/m³.
●Automatic loader for massive continuous production connected to a production line.
●Our barrel blast machine are designed to process a variety of parts that can be tumbled.
●The endless conveyor belt and lateral round place creates a trough in which parts are treated.
●The number and power of the turbines are chosen according to the requirement production rate.
●Optional PLC control system, stable quality and easy to get support from local.
●No-pit, easy for install and move and save cost.
It is a tumble belt conveyor machine designed and built as fully integrated blast cleaning system. It provides a cost-effective solution for batch cleaning, deburring, descaling, decoring, deflashing and peening a wide variety of products including: Ferrous and non-ferrous castings, heat treated forgings, small automotive parts, die castings,
fasteners..and much more.
Qingdao Dongheng Foundry Machinery Co., Ltd., is a professional foundry casting equipment manufacturers, Located in the Lingang Industrial Park, Huangdao District of Qingdao City, here is the manufacturing base, complete industry categories, mechanical and electrical supporting the environment and strategic location, land and sea air transportation facilities.
Southern Cross Harbor Tunnel through the Qingdao Railway Station, north cross-sea bridge in-line near Qingdao Airport.Foundry Machinery Co.,Ltd. Qingdao Dongheng the existing staff of about"! 00 people, covering an area of nearly 40 acres, plant area of over 10,000 square meters, is a collection of scientific research, design, manufacture, installation and commissioning and technical advice as one of modern integrated machinery business.
Production of resin sand casting line, clay sand reclamation complete sets of equipment; V-process casting line, EPC modeling equipment; sand & shot blasting equipment; core shell machinery, core shooting machine, molding machine.
Complete sets of automatic molding line environmental protection equipment for casting enterprises to provide a full range of pre and post sales services.
Qingdao Dongheng Foundry Machinery Co., Ltd. research strength is strong, long-term friendly relations of cooperation with major domestic research institutes, such as a hospital in Bengbu, Shanghai nine homes, Shenyang Institute of Electrical and the Luoyang four of Hospitals, Zhengzhou six homes, always keep up with the latest technology in the industry to comply with the "quality first, customer first" service approach, with new product design, development, prototype, debug capabilities, business, and technical staff time and up close, the user needs profound practical experience, each product an improvement are for user convenience, the interests of users. The spirit of "scientific, rigorous and efficient" style of work in the shortest possible time in accordance with the requirements to provide users with the best technical solutions, and delivery in the shortest period quality. Through a wide range of technical exchanges and cooperation, the introduction of foreign advanced technologies that will make my company's products to reach the domestic advanced level.The sand casting, molding line, shot blasting various aspects of senior experts in leading technology work, the experts have a wealth of experience and high technology of the industry, our company's product quality and technical content are at the forefront of the industry .
1.What is the target market for this machine ?
The Blaster is designed for customers who require a more sophisticated method than just manual cleaning in preparation for further processing or painting.
2.What type of abrasive media does it use ?
The Blaster is designed to use round steel shot. The shot is recycled inside the system and gets smaller and smaller during the blasting process, until it is completely consumed. Approximately two tons are required for start-up, and approximately 20 pounds are consumed per blasting hour. Replenishment is easily done as needed.
3.What utilities are needed to run the Blaster ?
The electrical system runs on three-phase input and a transformer will be provided for your supply voltage if required. Clean and dry compressed air supply is also needed.
4.What does it cost to operate ?
The highly efficient turbines require much less power that competitor's shot blast machines. Including abrasive consumption, power consumption and maintenance, the total operating cost averages around $20 per hour in US. When comparing this to your current methods, keep in mind that the Blaster is at least 4 to 5 times as productive as manual cleaning and only one operator is required to load and run the machine while it is working. Labor costs are much lower, plus you will have a huge amount of extra capacity for cleaning.
5.Are there any special operator skills required for the Shot Blaster ?
No, once the machine is installed and adjusted by our technician, running the machine consists of merely switching it on and setting the speed dial for the desired surface finish. Maintenance is simple too.
